Creating a Behavior From Scratch

In this tutorial we will implement and execute a simple behavior tree starting from scratch. By the end of it, you'll be familiar with every development step required for creating behaviors with AutoAPMS.

The full source code of the following examples can be found in the GitHub repository inside the package auto_apms_examples.

Implement a Simple Skill

We're going to create a simple skill that repeatedly prints a given text to the terminal. To achieve this using AutoAPMS and ROS 2, we need to implement an action server that performs the task of writing to the terminal and a separate client that is supposed to send a message specifying the goal of the action. You could approach this development task by sticking to the official ROS 2 tutorial for writing an action. However, we'd like to show you a more streamlined and modular approach enabled by AutoAPMS.

Action Interface

To define your ROS 2 interfaces, it's common practice to create a separate package that contains .msg, .service and .action files for topics, services and actions respectively. We name this package my_package_interfaces and create the following interface file:

action/ExampleSimpleSkill.action

txt

# Request
string msg
uint8 n_times 1
---
# Result
float64 time_required
---
# Feedback

Server

For implementing robot skills using a ROS 2 action server, we provide the helper class ActionWrapper. The SimpleSkillServer shown below provides the functionality we want:

src/simple_skill_server.cpp

cpp

#include "my_package_interfaces/action/example_simple_skill.hpp"
#include "auto_apms_util/action_wrapper.hpp"

namespace my_namespace
{
using SimpleSkillActionType = my_package_interfaces::action::ExampleSimpleSkill;

class SimpleSkillServer : public auto_apms_util::ActionWrapper<SimpleSkillActionType>
{
public:
  SimpleSkillServer(const rclcpp::NodeOptions & options)
  : ActionWrapper("simple_skill", options) {}

  // Callback invoked when a goal arrives
  bool onGoalRequest(std::shared_ptr<const Goal> goal_ptr) override final
  {
    index_ = 1;
    start_ = node_ptr_->now();
    return true;
  }

  // Callback invoked asynchronously by the internal execution routine
  Status executeGoal(
    std::shared_ptr<const Goal> goal_ptr,
    std::shared_ptr<Feedback> feedback_ptr,
    std::shared_ptr<Result> result_ptr) override final
  {
    RCLCPP_INFO(node_ptr_->get_logger(), "#%i - %s", index_++, goal_ptr->msg.c_str());
    if (index_ <= goal_ptr->n_times) {
      return Status::RUNNING;
    }
    result_ptr->time_required = (node_ptr_->now() - start_).to_chrono<std::chrono::duration<double>>().count();
    return Status::SUCCESS;
  }

private:
  uint8_t index_;
  rclcpp::Time start_;
};
}  // namespace my_namespace

// Register the skill as a ROS 2 component
#include "rclcpp_components/register_node_macro.hpp"
RCLCPP_COMPONENTS_REGISTER_NODE(my_namespace::SimpleSkillServer)

All we have to do in the CMakeLists.txt of our package is to invoke this macro provided by rclcpp_components (assuming you add the server's source file to a shared library called "simple_skill_server"):

CMakeLists.txt (With server executable)CMakeLists.txt (Without server executable)

cmake

project(my_package)

find_package(ament_cmake REQUIRED)
find_package(rclcpp_components REQUIRED)
find_package(my_package_interfaces REQUIRED)
find_package(auto_apms_util REQUIRED)

# Create shared library
add_library(simple_skill_server SHARED
  "src/simple_skill_server.cpp"  # Replace with your path
)
target_link_libraries(simple_skill_server PUBLIC
  rclcpp_components::component
  ${my_package_interfaces_TARGETS}
  auto_apms_util::auto_apms_util
)

# Register server component
rclcpp_components_register_node(simple_skill_server
PLUGIN "my_namespace::SimpleSkillServer"
  EXECUTABLE "simple_skill_server"
)
# Allows you to simply start the server by running
# ros2 run <package_name> simple_skill_server

# Install the shared library to the standard directory
install(
  TARGETS
  simple_skill_server
  LIBRARY DESTINATION lib
  ARCHIVE DESTINATION lib
  RUNTIME DESTINATION bin
)

ament_package()

cmake

project(my_package)

find_package(ament_cmake REQUIRED)
find_package(rclcpp_components REQUIRED)
find_package(my_package_interfaces REQUIRED)
find_package(auto_apms_util REQUIRED)

# Create shared library
add_library(simple_skill_server SHARED
    "src/simple_skill_server.cpp"  # Replace with your path
)
target_link_libraries(simple_skill_server PUBLIC
  rclcpp_components::component
  ${my_package_interfaces_TARGETS}
  auto_apms_util::auto_apms_util
)

# Register server component
rclcpp_components_register_nodes(simple_skill_server
  "my_namespace::SimpleSkillServer"
)
# No executable file is generated. You must manually do that
# or write a launch script that loads this ROS 2 node component

# Install shared libraries to the standard directory
install(
  TARGETS
  simple_skill_server
  LIBRARY DESTINATION lib
  ARCHIVE DESTINATION lib
  RUNTIME DESTINATION bin
)

ament_package()

Client

Until now, we've pretty much only applied the standard ROS 2 workflow. This is about to change when we create the client for SimpleSkillServer. Very differently to what you're used to with ROS 2, the SimpleSkillClient in the following snippet does NOT inherit the interface of a typical rclcpp::Node. When using AutoAPMS, we prefer to implement clients as behavior tree nodes. In this case, it is a RosActionNode.

simple_skill_client.cpp

cpp

#include "my_package_interfaces/action/example_simple_skill.hpp"
#include "auto_apms_behavior_tree/node.hpp"

namespace my_namespace
{
using SimpleSkillActionType = my_package_interfaces::action::ExampleSimpleSkill;

class SimpleSkillClient : public auto_apms_behavior_tree::core::RosActionNode<SimpleSkillActionType>
{
public:
  using RosActionNode::RosActionNode;

  // We must define data ports to accept arguments
  static BT::PortsList providedPorts()
  {
    return {BT::InputPort<std::string>("msg"),
            BT::InputPort<uint8_t>("n_times")};
  }

  // Callback invoked to specify the action goal
  bool setGoal(Goal & goal) override final
  {
    RCLCPP_INFO(logger_, "--- Set goal ---");
    goal.msg = getInput<std::string>("msg").value();
    goal.n_times = getInput<uint8_t>("n_times").value();
    return true;
  }

  // Callback invoked when the action is finished
  BT::NodeStatus onResultReceived(const WrappedResult & result) override final
  {
    RCLCPP_INFO(logger_, "--- Result received ---");
    RCLCPP_INFO(logger_, "Time elapsed: %f", result.result->time_required);
    return RosActionNode::onResultReceived(result);
  }
};
}  // namespace my_namespace

// Make the node discoverable for the class loader
AUTO_APMS_BEHAVIOR_TREE_REGISTER_NODE(my_namespace::SimpleSkillClient)

Just like with the server, we must also add something to the CMakeLists.txt of our package to actually make use of the SimpleSkillClient node. AutoAPMS provides a CMake macro that makes it easy for you to register custom nodes with the ament_index, a core package of ROS 2 that allows installing resources which can be queried at runtime. The following assumes that you add the client node's source file to a shared library called "simple_skill_nodes".

CMakeLists.txt (Client)

cmake

project(my_package)

find_package(ament_cmake REQUIRED)
find_package(my_package_interfaces REQUIRED)
find_package(auto_apms_behavior_tree REQUIRED)

# Create shared library for the node
add_library(simple_skill_nodes SHARED
  "src/simple_skill_client.cpp"
)
target_link_libraries(simple_skill_nodes PUBLIC
  ${my_package_interfaces_TARGETS}
  auto_apms_behavior_tree::auto_apms_behavior_tree
)

# Register client behavior tree node
auto_apms_behavior_tree_register_nodes(simple_skill_nodes
  "my_namespace::SimpleSkillClient"
)

# Install shared libraries to the standard directory
install(
  TARGETS
  simple_skill_nodes
  LIBRARY DESTINATION lib
  ARCHIVE DESTINATION lib
  RUNTIME DESTINATION bin
)

ament_package()

By "registering a node" we expose the class as a plugin resource and make it discoverable at runtime. Note that registering a node works very similar to what we've done with SimpleSkillServer.

Type	C++	CMake
Server	`RCLCPP_COMPONENTS_REGISTER_NODE`	`rclcpp_components_register_node` `rclcpp_components_register_nodes`
Client	`AUTO_APMS_BEHAVIOR_TREE_REGISTER_NODE`	`auto_apms_behavior_tree_register_nodes`

Create a Behavior

With both server and client implemented, we are done writing the low-level source code and ready to climb up the ladder of abstraction: We may now build our first behavior tree and actually employ the functionality we've just created!

Configure a Node Manifest

As you know, behavior trees are composed of nodes. When using AutoAPMS, all behavior tree nodes are plugins (except for the builtin/native nodes statically implemented by BehaviorTree.CPP) are loaded at runtime when the tree is created. To specify which node classes to load and how to instantiate them, you must specify so-called registration options. To reproduce this example, you don't need to know the details about this concept. Nevertheless, feel encouraged to check out the concept page for node manifests.

The node manifest for the behavior tree we're going to build looks like this:

config/simple_skill_node_manifest.yaml

yaml

SimpleSkillActionNode:
  class_name: my_namespace::SimpleSkillClient
  topic: simple_skill

HasParameter:
  class_name: auto_apms_behavior_tree::HasParameter

We want to include two custom nodes in our behavior tree:

SimpleSkillActionNode
This is the node that acts as a client to the simple_skill action we implemented above. As mentioned before, we need to include this node to send the action goal to the server.
HasParameter
We additionally incorporate a node that allows us to determine if the tree executor defines a certain ROS 2 parameter. This allows us to determine if we it's valid to retrieve the value of n_times from the executor's parameters. This node is one of many standard nodes provided by the package auto_apms_behavior_tree.

Before we're able to build our behavior tree, we must make sure that our node manifest will be available at runtime. This is achieved by registering one more ament_index resource using the NODE_MANIFEST argument accepted by the CMake macros auto_apms_behavior_tree_register_nodes and auto_apms_behavior_tree_register_trees. The following section defines the corresponding CMakeLists.txt. Visit the designated tutorial towards adding node manifests to learn more about the details.

Update the Client Package

You must modify the CMakeLists.txt of your package according to how you intend to create the behavior tree. We distinguish between two general approaches: You may either create a behavior tree graphically using a suitable visual editor or programmatically by incorporating the C++ API offered by AutoAPMS. The following shows the required configuration for both approaches:

You just need to add auto_apms_behavior_tree_register_trees.

CMakeLists.txt

cmake

project(my_package)

find_package(ament_cmake REQUIRED)
find_package(my_package_interfaces REQUIRED)
find_package(auto_apms_behavior_tree REQUIRED)

# Create shared library for the node
add_library(simple_skill_nodes SHARED
  "src/simple_skill_client.cpp"
)
target_link_libraries(simple_skill_nodes PUBLIC
  ${my_package_interfaces_TARGETS}
  auto_apms_behavior_tree::auto_apms_behavior_tree
)

# Register client behavior tree node
auto_apms_behavior_tree_register_nodes(simple_skill_nodes
  "my_namespace::SimpleSkillClient"
)

# Register simple skill tree
auto_apms_behavior_tree_register_trees(
  "behavior/simple_skill_tree.xml"
  NODE_MANIFEST
  "config/simple_skill_node_manifest.yaml"
)

# Install shared libraries to the standard directory
install(
  TARGETS
  custom_nodes
  LIBRARY DESTINATION lib
  ARCHIVE DESTINATION lib
  RUNTIME DESTINATION bin
)

ament_package()

Learn more 🎓

If you don't fully understand the CMakeLists.txt for the programmatic approach and want more detailed information about behavior build handlers, refer to the tutorial Building Behavior Trees: Programmatic Approach.

Build the Behavior Tree

Let's define an arbitrary example behavior which uses the functionality provided by our simple skill to print a message to the terminal a specific amount of times. The following rules apply:

If a custom message was specified using a parameter, use this. Otherwise, use a default message.
If a custom number of prints to the terminal was specified using a parameter, use this. Otherwise, only print once.
After both variables have been determined, execute the simple_skill action with the corresponding goal.
To indicate that the behavior is finished, print a final message once.

For demonstration purposes, we implement this behavior using both the graphical and the programmatic approach:

The graphical representation of behavior trees is based on the XML format. So to define a behavior incorporating our simple skill, we must create a new .xml file from scratch. You can do that manually or run this convenient command that automatically writes an empty behavior tree to the given file.

Terminal

bash

ros2 run auto_apms_behavior_tree new_tree "behavior/simple_skill_tree.xml"

TIP

Also consider using the corresponding VSCode Task which does the same thing.

➡️ Terminal -> Run Task... -> Write empty behavior tree

You must manually create an empty .xml file and open it before executing this task, since the current opened file will be used.

No matter how or where you create the behavior tree file, you'll probably need a visual editor for behavior trees. We recommend Groot2, because it's designed to be compatible with the behavior tree XML schema used by AutoAPMS and considered the de facto standard.

The graphical approach allows the user to quickly and intuitively configure the XML for the behavior tree For a step-by-step guide on how to build a behavior tree using Groot2, follow the link to the corresponding tutorial. Below, we provide the graphical and the XML representation of our example behavior tree:

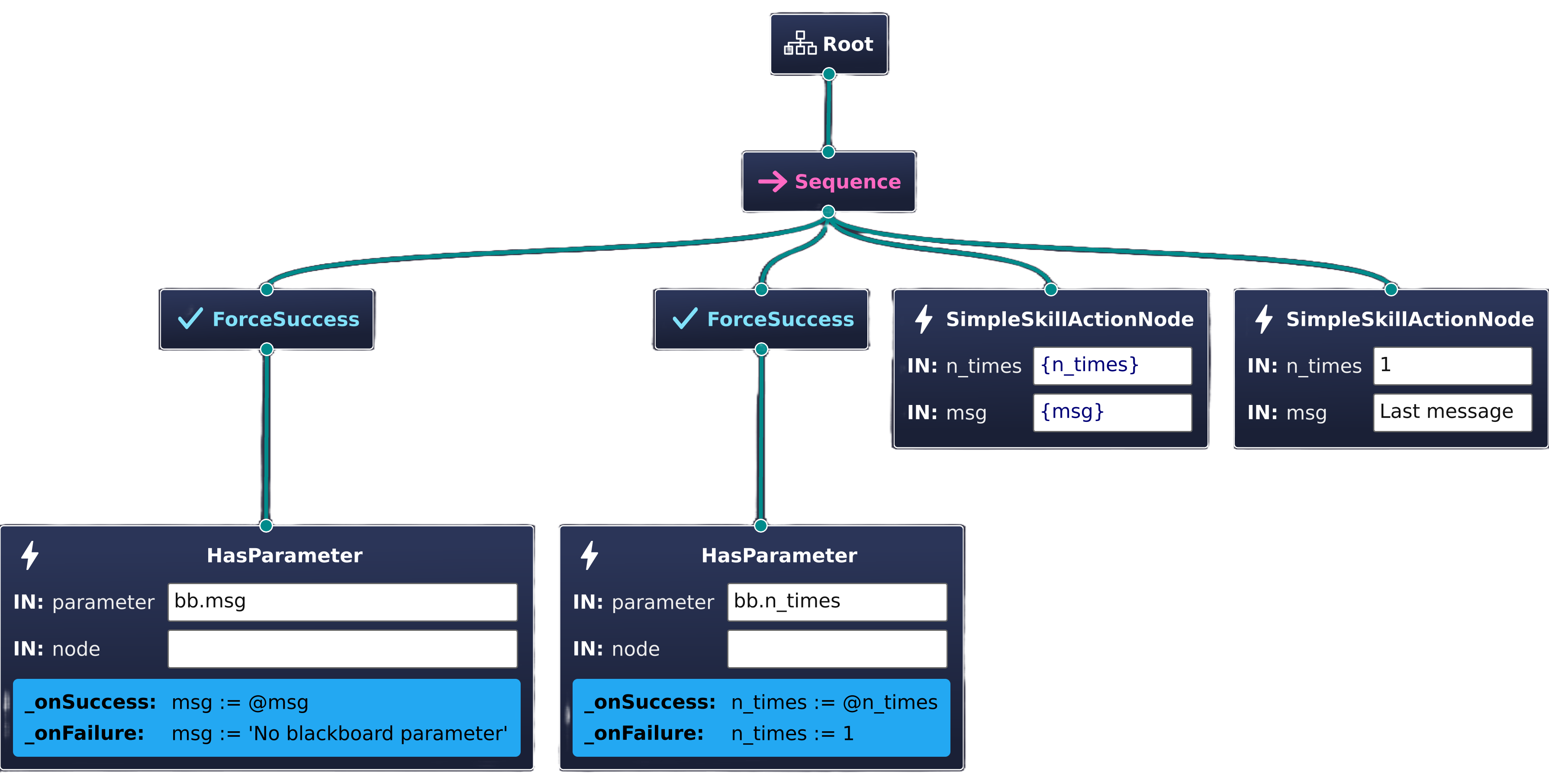

Example Simple Skill Behavior Tree

behavior/simple_skill_tree.xml

xml

<?xml version="1.0" encoding="UTF-8"?>
<root BTCPP_format="4"
      main_tree_to_execute="SimpleSkillDemo">
  <BehaviorTree ID="SimpleSkillDemo">
    <Sequence>
      <ForceSuccess>
        <HasParameter parameter="bb.msg"
                      node=""
                      _onSuccess="msg := @msg"
                      _onFailure="msg := &apos;No blackboard parameter&apos;"/>
      </ForceSuccess>
      <ForceSuccess>
        <HasParameter parameter="bb.n_times"
                      node=""
                      _onSuccess="n_times := @n_times"
                      _onFailure="n_times := 1"/>
      </ForceSuccess>
      <SimpleSkillActionNode n_times="{n_times}"
                             msg="{msg}"/>
      <SimpleSkillActionNode n_times="1"
                             msg="Last message"/>
    </Sequence>
  </BehaviorTree>
</root>

What are Global Blackboard Parameters?

This example behavior tree showcases a very useful concept introduced by AutoAPMS: Global Blackboard Parameters. They are accessed using the bb./@ prefix and allow us to adjust the behavior without rebuilding the entire tree, thus makes it reusable. This is one of the reasons why AutoAPMS's adaption of the behavior tree paradigm is very well integrated with ROS 2.

Congratulations! 🎉 You are now familiar with the general workflow of building behavior trees.

Execute the Behavior

Finally, we're going to demonstrate how our simple skill and the behavior tree we've just created can be deployed. Make sure that you build and install AutoAPMS and your custom package which contains the source code for the example described above (we called it my_package before).

Terminal

bash

colcon build --packages-up-to my_package --symlink-install

AutoAPMS conveniently provides an executable called run_behavior which we will use as shown in Executing Behaviors. To run the simple skill example, execute the following steps:

If your created a behavior tree XML file using a graphical user interface like Groot2 or a simple text editor, it must be registered using the CMake macro auto_apms_behavior_tree_register_trees. This allows the behavior tree to be discovered at runtime. The recommended way of deploying the behavior is using the ros2 behavior run CLI tool (requires package auto_apms_ros2behavior). However, you can also stick to using the lower level run_behavior executable that comes with auto_apms_behavior_tree.

Terminal

bash

ros2 behavior run "<package_name>::<tree_file_stem>::<tree_name>"
# OR
ros2 run auto_apms_behavior_tree run_behavior "<package_name>::<tree_file_stem>::<tree_name>"

TIP

Also consider using the corresponding VSCode Task which does the same thing.

➡️ Terminal -> Run Task... -> Run behavior tree

Run the Example (Graphical approach)

Let us demonstrate the intended usage of run_behavior for the behavior tree we created applying the graphical approach. AutoAPMS provides SimpleSkillServer, SimpleSkillClient and the example tree called SimpleSkillDemo with the package auto_apms_examples. Other than executing the tree, you must of course make sure that the server providing our simple skill is started as well.

Using only the terminal

Start the simple skill server in its own terminal:

Terminal

bash

ros2 run auto_apms_examples simple_skill_server

Afterwards, create a new terminal and start executing the behavior tree:

Terminal

bash

ros2 behavior run auto_apms_examples::simple_skill_tree::SimpleSkillDemo
# OR
ros2 run auto_apms_behavior_tree run_behavior auto_apms_examples::simple_skill_tree::SimpleSkillDemo

Using a launch file

Or you do both in a single launch file similar to this:

simple_skill_launch.py

from launch import LaunchDescription
from launch_ros.actions import Node
from auto_apms_behavior_tree.launch import RunBehavior, BehaviorResource

def generate_launch_description():
    return LaunchDescription(
        [
            # Spawn the simple skill server
            Node(
                package="auto_apms_examples",
                executable="simple_skill_server"
            ),
            # Spawn the behavior tree executor for the simple skill tree
            RunBehavior(
                build_request=BehaviorResource(
                    "auto_apms_examples::simple_skill_tree::SimpleSkillDemo"
                )
            )
        ]
    )

Terminal

bash

ros2 launch auto_apms_examples simple_skill_launch.py approach:=graphical

Modify the behavior using parameters

Remember that we configured the behavior tree so that we can adjust the behavior according to the variables msg and n_times? They can be specified using ROS 2 parameters by either using the command line or a launch file. For example, run this:

Terminal

bash

ros2 behavior run auto_apms_examples::simple_skill_tree::SimpleSkillDemo --blackboard msg:="Custom message" n_times:=10
# OR
ros2 run auto_apms_behavior_tree run_behavior auto_apms_examples::simple_skill_tree::SimpleSkillDemo --ros-args -p bb.msg:="Custom message" -p bb.n_times:=10

Or add the parameters inside the launch file:

simple_skill_launch.py

from launch import LaunchDescription
from launch_ros.actions import Node
from auto_apms_behavior_tree.launch import RunBehavior, BehaviorResource

def generate_launch_description():
    return LaunchDescription(
        [
            # Spawn the simple skill server
            Node(
                package="auto_apms_examples",
                executable="simple_skill_server"
            ),
            # Spawn the behavior tree executor for the simple skill tree
            RunBehavior(
                build_request=BehaviorResource(
                    "auto_apms_examples::simple_skill_tree::SimpleSkillDemo"
                ),
                blackboard={"msg": "Custom message", "n_times": 10}
            )
        ]
    )

Try out setting the variables yourself!

Creating a Behavior From Scratch ​

Implement a Simple Skill ​

Action Interface ​

Server ​

Client ​

Create a Behavior ​

Configure a Node Manifest ​

Update the Client Package ​

Build the Behavior Tree ​

Execute the Behavior ​

Run the Example (Graphical approach)

Using only the terminal

Using a launch file

Modify the behavior using parameters

Creating a Behavior From Scratch

Implement a Simple Skill

Action Interface

Server

Client

Create a Behavior

Configure a Node Manifest

Update the Client Package

Build the Behavior Tree

Execute the Behavior
